| Ball Bearing Die Sets |
There are 2 common styles of Ball Bearing die sets that we manufacture.
We can machine any die set per a specification sheet, a sketch, a print or
a CAD file, including all required machining. Cutouts, machined pockets,
lift holes, spring pockets, dowel holes and other tooling holes are all
machined per standard tolerances.
- 'L' or Lempco style which has a slotted pin.
- 'D' or Danly style which has a washer & screw on top of the pin.
We can machine any die set per a specification sheet, a sketch, a print or
a CAD file, including all required machining. Cutouts, machined pockets,
lift holes, spring pockets, dowel holes and other tooling holes are all
machined per standard tolerances.
|

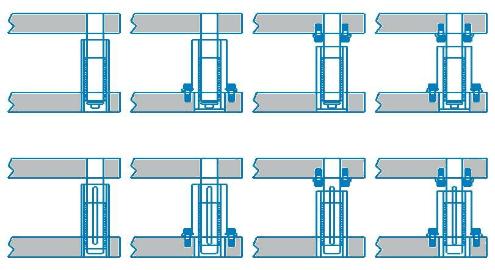

| Configurations of 'D' style die sets (above) ------------------------------------------------------------------- Configurations of 'L' style die sets (below) |
|
